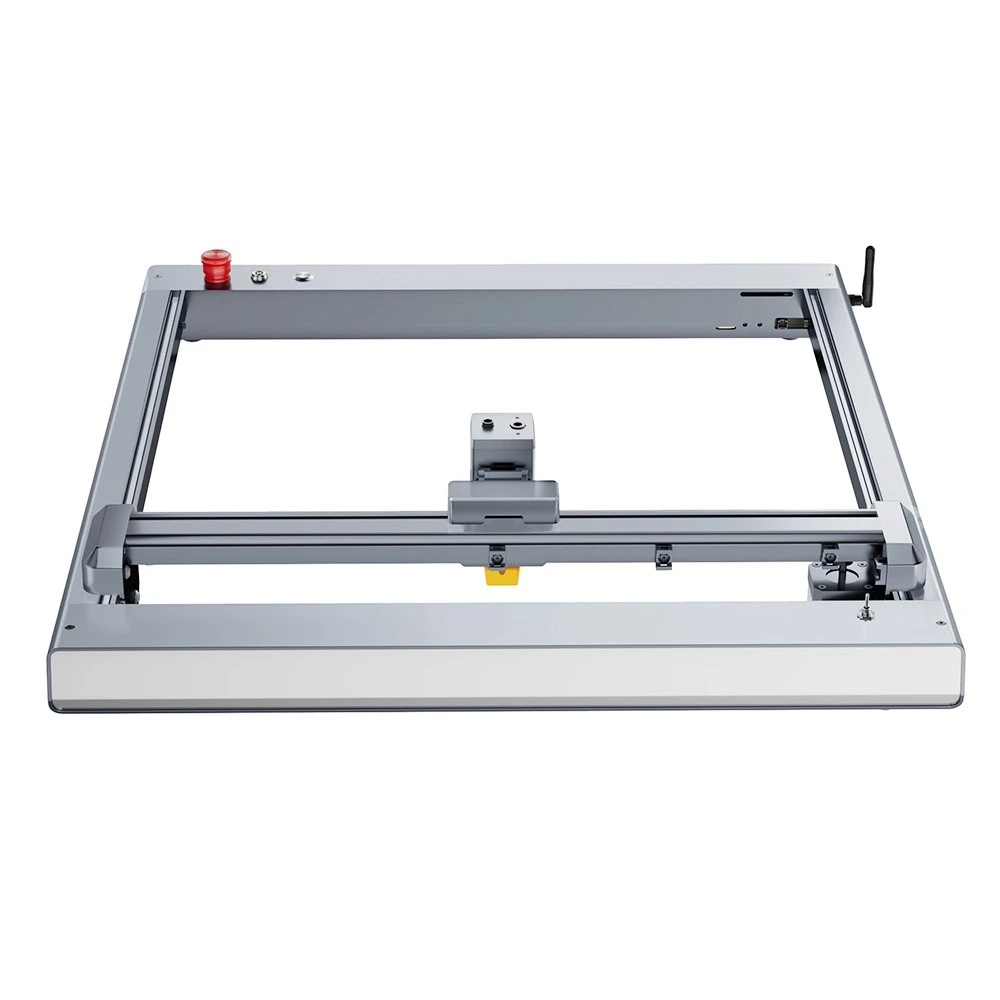

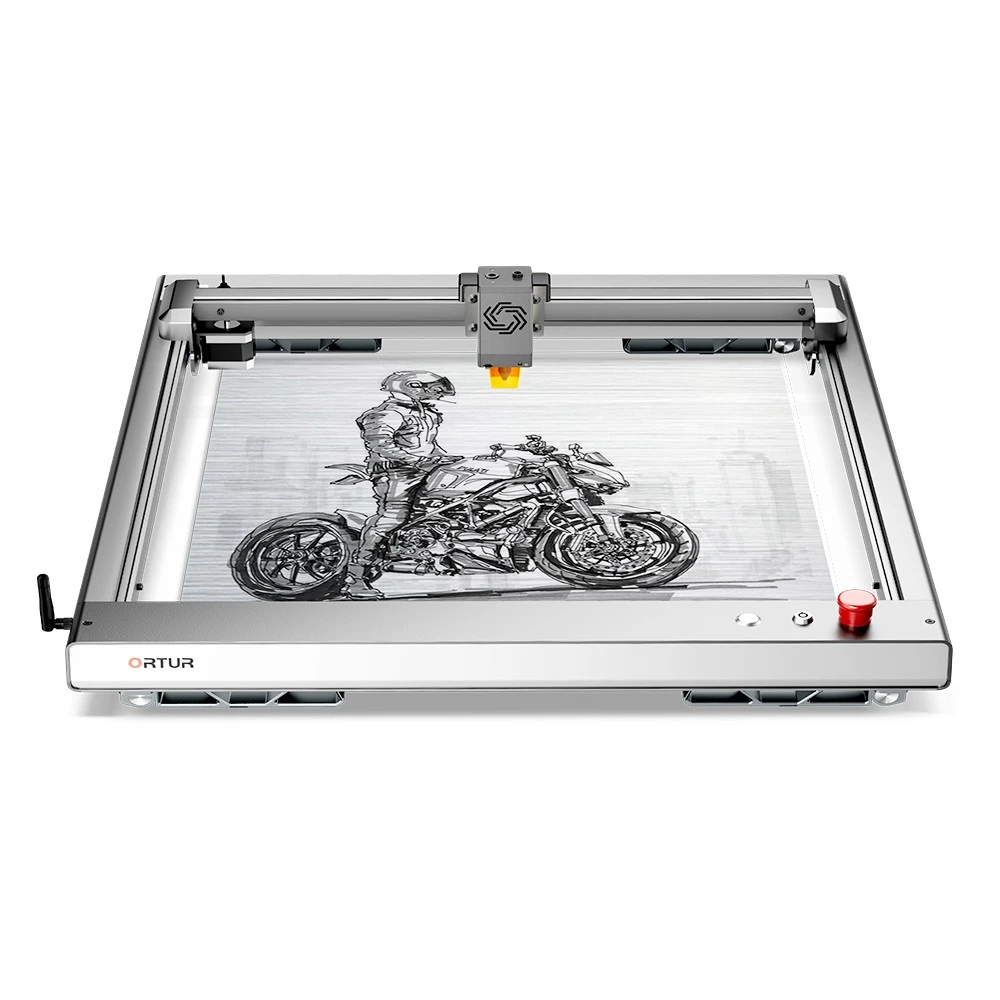

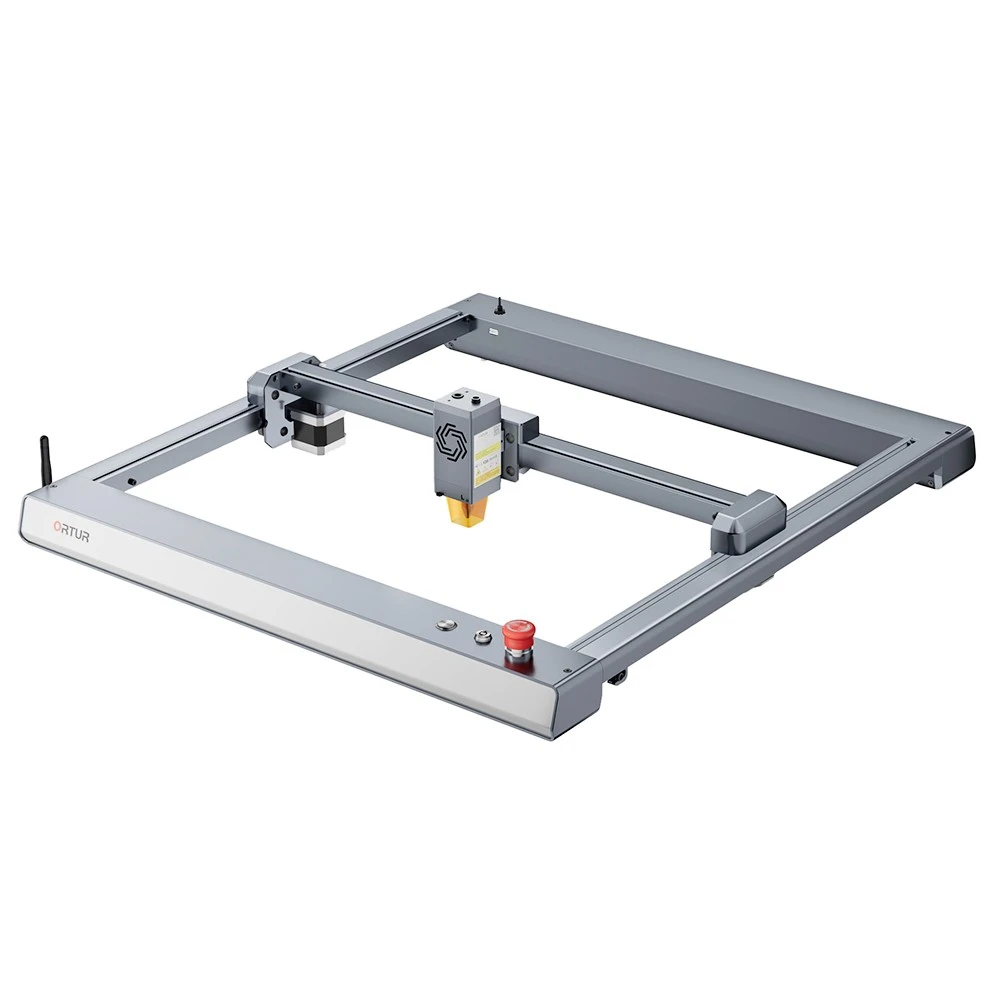

Name: ORTUR Laser Master 3 10W Laser Engraver Cutter, 20,000mm/min, 0.05x0.1mm Focus Spot, LU2-10A Laser Module, Cuts 30mm Acrylic, Emergency Stop, Child Lock, Built-in WiFi, Engraving Area 400mmx400mm
SKU: 518155
Availability: InStock

New

ORTUR Laser Master 3 10W Laser Engraver Cutter, 20,000mm/min, 0.05x0.1mm Focus Spot, LU2-10A Laser Module, Cuts 30mm Acrylic, Emergency Stop, Child Lock, Built-in WiFi, Engraving Area 400mmx400mm

Original price was: $310.00.Current price is: $98.99.

SKU: 518155 Categories: Laser Engravers & Cutters, Laser Engravers & Cutters Tag: ORTUR

High quality products, low prices.
Free and fast shipping worldwide
Where quality meets convenience.
Protecting Your Payment Information

Description
Reviews (0)

Highlights

Upgraded ORTUR Laser Master 3
ORTUR Laser Master 3 laser engraver is equipped with the latest 11th generation OLM-ESP-PRO-V2.4 motherboard, which adopts the V2.0 series smart laser firmware. It features 20000mm/min engraving speed, integrated air assist, and dual fans, bringing smooth engraving, higher accuracy, and more refined engraving products.
10W LU2-10A Laser Module
LU2-10A laser module adopts the 4th generation of laser spot compression technology and the 2nd generation of laser diodes combining technology. It has 10w high power and a compressed laser spot, so it’s better at cutting and engraving harder materials.
Higher Precision
With an improved mechanical structure, it has a 0.05×0.1mm focal spot, bringing delicate details at 0.01mm. It can cut 12mm wood and10mm acrylic in one pass. Also, it can cut the pine board with 20mm max thickness and acrylic sheet with 30mm max thickness.
7 Safety Features
It features a safety lock (keep the key, professional use only), active position protection, sloping position protection, exposure duration detection and limitation, voltage and current safety control system, host computer watchdog, and emergency stop switch.
Wide Compatibility
ORTUR Laser Master 3 laser engraver can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, and Laser Explorer (ORTUR APP). LaserGRBL supports Win XP / Win 7 / Win 8 / Win 10, and LightBurn supports Windows, Mac OS, and Linux systems (need to be paid), while Laser Explorer supports Mac OS 10.0 and Android 7.0 systems.
Laser Explorer has 2 switchable modes: easy mode and professional mode. iPhones, Android Phones, iPads, and Android Pads are supported, and it also supports printing photos from mobile phones.

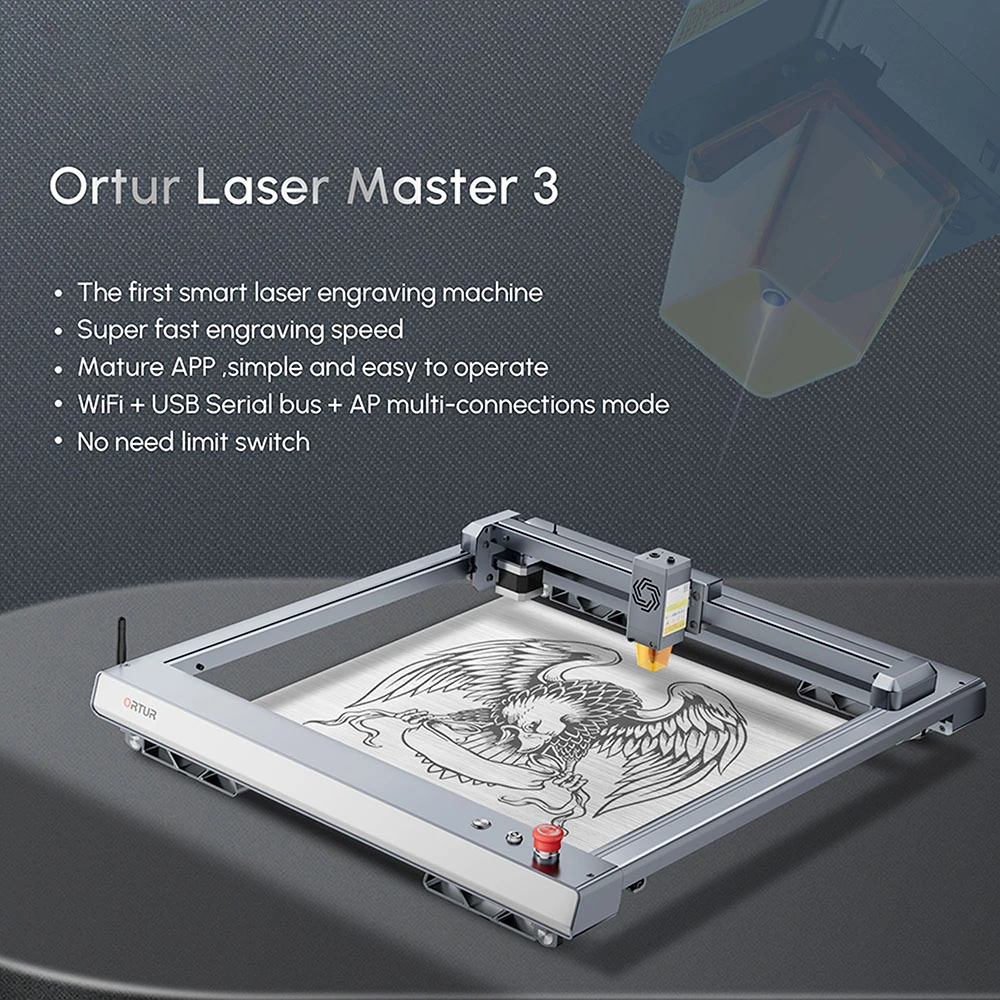

Ortur Laser Master 3

Safer, Faster, Smarter,
Flagship Laser Engraver

7 Safety
Protections

11th Generation
Powerful Motherboard

10W Laser Power
0.05mm*0.1mm

Professional APP
Support iOS/Android
cellphone, iPad

Built-in
Wifi

USB
Serial bus

Access
Point

Faster Speed 20,000mm/min

Just 1 Minute to Make It Laser Customers’ Name on Your Products Good for Business Use

Stronger Power

More Powerful Capabilities Create More Possibilities

Powerful Enough Cut 30mm Acrylic, Cut Through 10mm Acrylic / Pine Board One Pass (With Air Assist)

Higher Precision

The Improved Mechanical Structure Focal Spot 0.05×0.1mm
Bring Delicate Details at 0.01mm

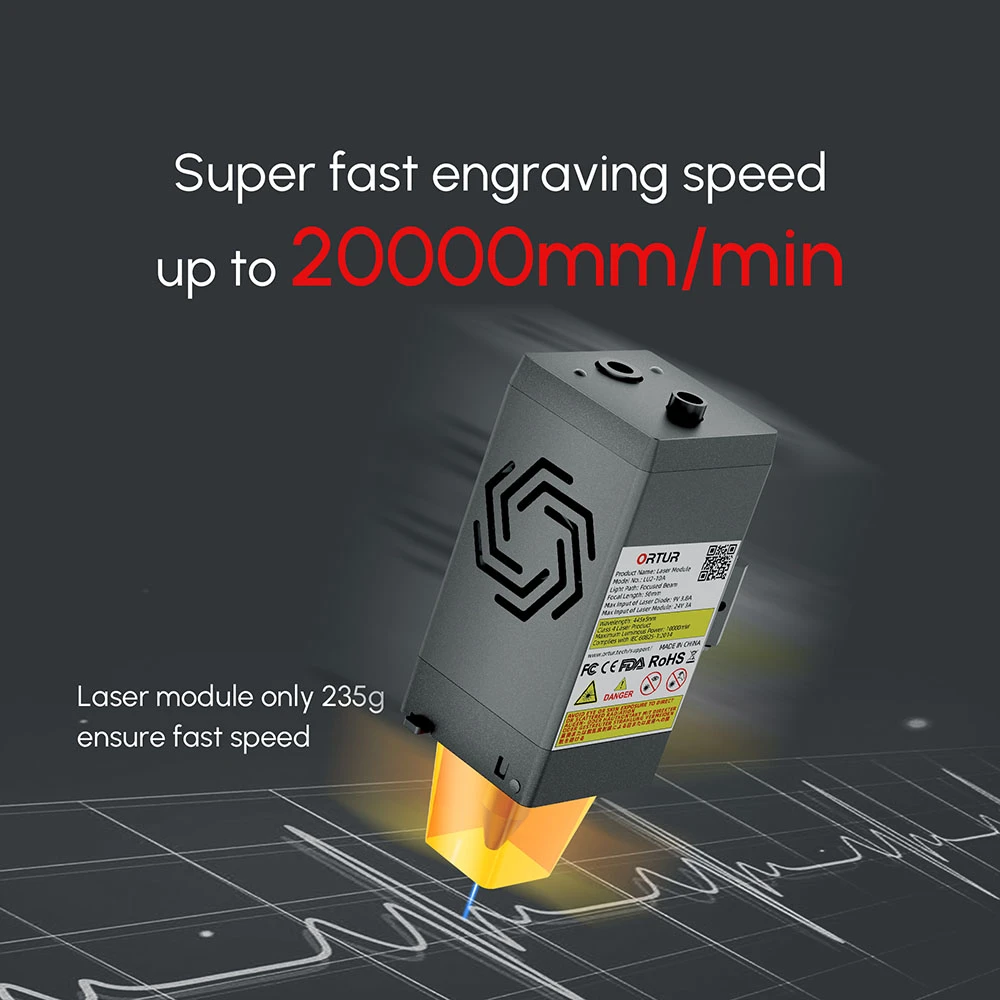

Stable & Lighter 10W Laser Module

Integrated Air Assist, Dual Fans, Foldable Focal Gauge, All in 235g Weight
The 4th Generation of Laser Spot Compression Technology
The 2nd Generation of Laser Diodes Combining Technology

Focal Gauge Laser Diode 1 Air Intake Laser Diode 2 10W Laser

Laser Explorer
Professional APP, But Easy to Use

Switchable Modes: Easy Mode or Professional Mode
Automatic Operation Guide, Novice Friendly
(Support iPhones, Android Phones, iPads, Android Pads)

The Latest Smart Laser Engraver Solution

From Ortur Laser Application Technology Lab
The 11th Generation Of Laser Motherboard
The V2.0 Series Smart Laser Firmware
In a Word, Know More Your Want, Easy to Use

Safety! Safety! Safety!

Laser is Dangerous, Safety is the Most Important!

1. Safety Lock(Keep the Key, Professional Use Only)
2. Active Position Protection
3. Sloping Position Protection
4. Exposure Duration Detection and Limitation
5. Voltage and Current Safety Control System
6. Host Computer Watchdog
7. Emergency Stop Switch

Imagine it, Design it, Make it!

Large Working Area

Product Parameter

Airframe Parts

Power Adapter *1

Laser Goggles *1

Card Reader + TF Card *1

Power Switch Keys *2

USB Cable *1

General	Brand: ORTUR Type: Laser Engraver Model: Laser Master 3 Color: Grey
Specification	Engraving Area: 400x400mm Engraving Speed: 20000mm/min Spot Size: About 0.05×0.1mm Motherboard: OLM-ESP-PRO-V2.4 Motors: 42×60 Y Stepper Motor xl, 42×40 Y Stepper Motor xl Available Luminous Power: LU2-10A (9500-10500mw) Product Material: 70% Aluminum +15% Steel + 5% Plastic + 5% Brass + 5% Others File Format: JPG/JPEG/PNG/BMP/SVG/ETC Laser Wavelength: 455+5nm Control Software: LaserGRBL/LightBurn/Laser Explorer (ORTUR APP) Engravable Material: Wood, acrylic, leather, metal, ceramics, fabrics, cylinder, food, tinted glass, stainless steel, paper, cardboard
Weight & Size	Package Weight: 6.5Kg Product Size(L x W x H): 58x55x15cm Package Size(L x W x H): 66x24x20cm
Package Contents	1 x Front Assembly 1 x Rear Assembly 2 x Synchronized Belt 1 x Laser Wire 1 x Circuit Group 1 x USB Cable 1 x YRR Motor Wire 1 x Slideway of Left Y-axis 1 x Slideway of Right Y-axis 1 x Assembly of X-axis 4 x M4x8mm Screws 2 x M3x6mm Screws 2 x Idler Assembly 1 x WiFi Aerial 2 x M4 Set Screws 1 x 2mm Allen Key 1 x 3mm Allen Key 1 x Wrench 1 x Testing Acrylic 4 x Testing Woods 1 x 2.5mm Allen key 1 x Laser Goggle 1 x Card Reader + TF Card 1 x Power Adapter 1 x Brush 10 x Cable Ties 1 x Testing Aluminium Flake 1 x Machine Key 1 x LU2-10A Laser Module 1 x Air Assist 1 x Pipe Connector 1 x Thumb Screw 1 x Air Pipe (OD: 6mm, ID: 4mm) 1 x Laser Shield 1 x Air Flow Regulator 1 x User Manual
